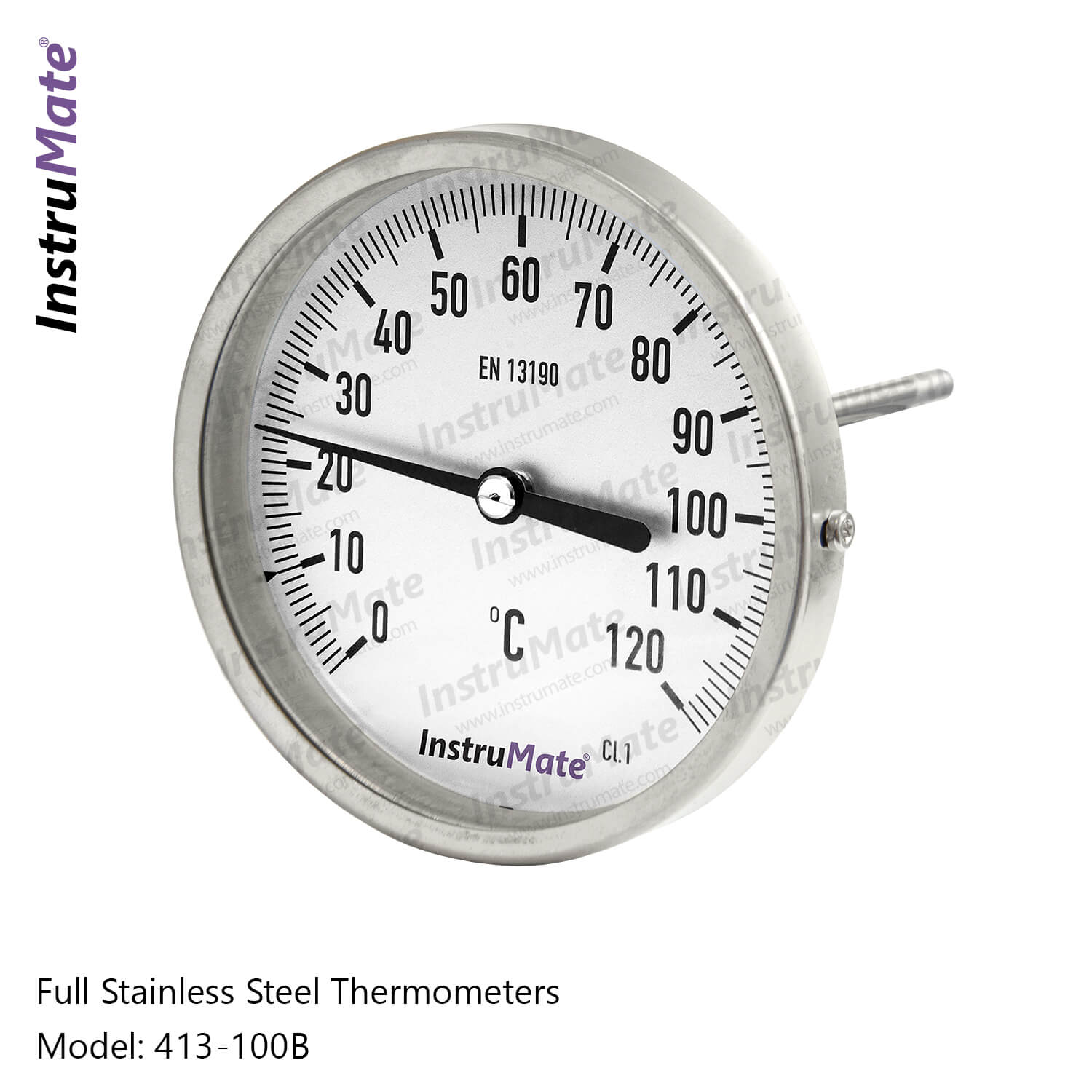

INSTRUMATE Industrial Bi-metal Thermometer Model 413
Description: The model 413 bimetal industrial thermometers are full stainless steel temperature gauges whose stem length and thread types are offered in various combinations. This allows them to be fit for many industrial applications not requiring a better ingress protection than IP43. The model 413 bimetal industrial thermometers has a fast reaction to temperature increase thanks to its high quality bimetal sensor.
Applications
* Temperature indication of liquids and gases under process
* Machine building, food industry, piping
* Chemical & Petrochemical plants
Special Features
* Cost effective industrial temperature measurement
* Flexible choice of stem length and connection designs
* Fast reaction of bimetal sensor
- Thông tin sản phẩm
Specification
Nominal Sizes in mm: 63, 100, 160
Scale Ranges in °C: -30…+50, -30…+60, -30…+70, -20…+120, 0…60, 0…100, 0…120, 0…160, 0…200, 0…250, 0…300, 0…400, 0…500
Pressure limitation at Stem: Max. 20 bar
Temperature Element: Bi-metal sensor
Pressure Limitations: Storage & Transport: -20…+60 °C
Accuracy: Class 1
Window: Glass
Stem Material: SS316
Diameter: 6mm
Standard Insertion
Lengths in mm: 50, 63, 80, 89, 100, 150, 200, 300, 400, 500, 600, 700, 800, 900, 1000, …
