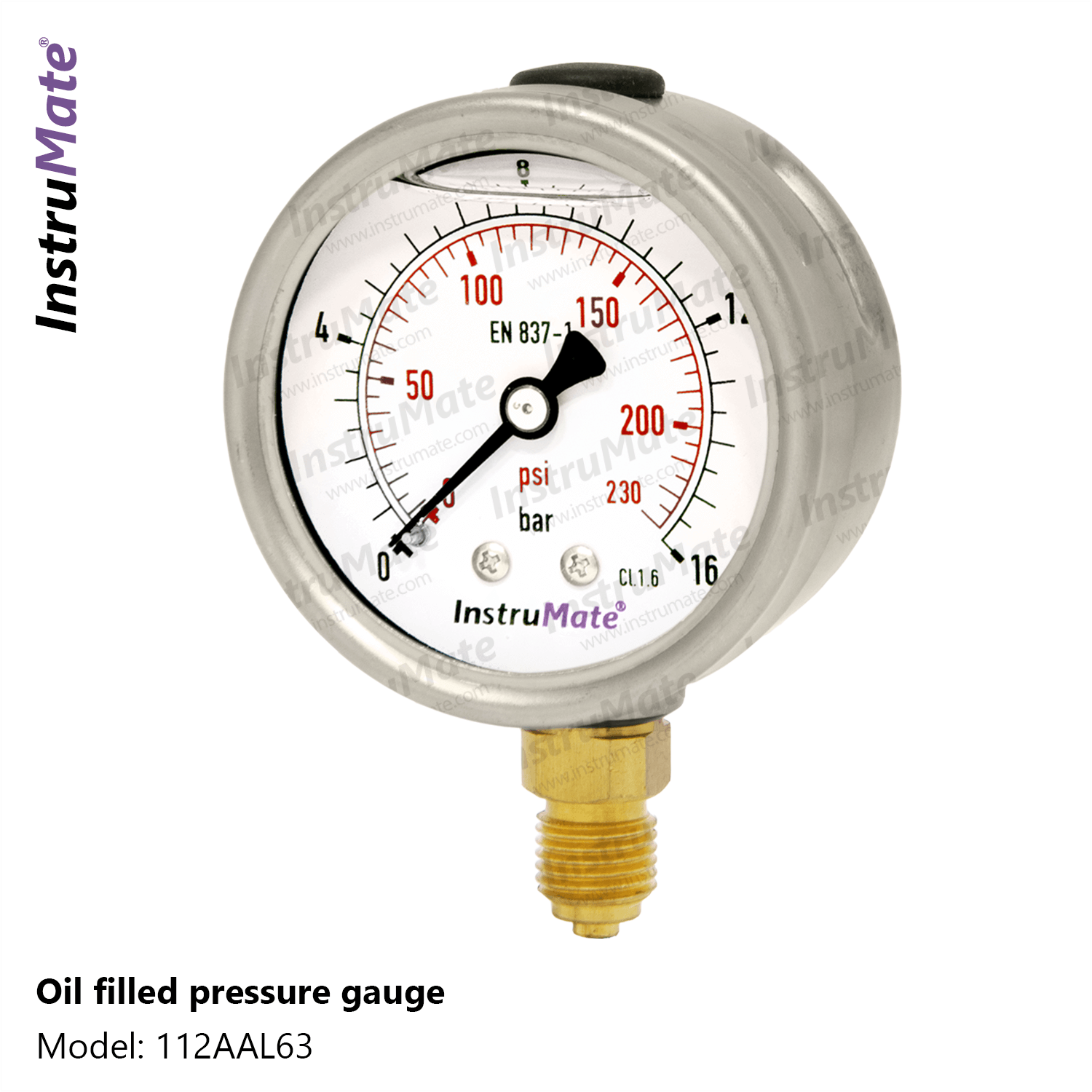

INSTRUMATE Oil Filled Pressure Gauge Model 112AA

Lượt xem : 43

Description: InstruMate group of oil fillable pressure gauge covers a series of oil-filled pressure gauges efficient for plants or machineries with pulsating pressures or mechanical vibrations. As sensitive a pressure gauge as might be, vibration threatens its long life span and that is the time InstruMate 112 series come into action.
InstruMate 112AA is not only shock resistant when filled, but also it has a heavy duty mechanism for more demanding applications (only with dial size 100 and 160mm) with the accuracy of 1% according to EN837-1. A safety glass and a micro-adjustable pointer are other advantages which distinguish it from average class of oil filled gauges in 100, 160mm dial size.
Since oil filled pressure gauges have a copper alloy connection, considerations about their corrosion and clogging is recommended.
The model 112AA is constructed from a matte stainless steel case with a DIN type bayonet bezel. All InstruMate pressure gauges have geometrically balanced dial designs, thus a much easier reading experience.
Application
* Hydraulic systems, pumps and presses
* Measuring needs with sudden or dynamic pressure changes
* Vibrating machineries, diesel engines
* Do not use directly for medias that are viscous, crystallizing and corroding copper alloy
Special Features
* Re-calibratable and re-adjustable
* Popular bayonet bezel design
* No leakage guaranteed
* Heavy duty mechanism for dial sizes 100 & 160mm

Liên hệ

Thông tin sản phẩm

Specification
Nominal Sizes in mm: 63, 100, 160
Scale Ranges:
      NS 63: 0…1 bar to 700 bar
      NS 100, 160: 0…0.6 bar to 700 bar
      Vacuum & compound ranges
Pressure Limitations:
Nominal size 63:
      Steady: 75% of full scale
      Fluctuating: 65% of full scale
      Over-Pressure: 100% of full scale
Nominal size 100, 160 (Heavy duty):
      Steady: 100% of full scale
      Fluctuating: 85% of full scale
      Over-Pressure: 130% of full scale
Permissible Temperature:
      Ambient: -20…+60 °C
      Medium: +65 °C Maximum
Accuracy:
      NS 63: 1.6% of full scale
      NS 100, 160: 1% of full scale
Window:
      NS 63: Instrument Glass
      NS 100, 160: Safety Glass
Case Matterial: SS304 (DIN type)
Pressure Element: Copper alloy

Options
* Request process connections other than stated in the table
* Safety glass 63mm
* Silisone oil or ti be shipped without oil
* Other pressure units
