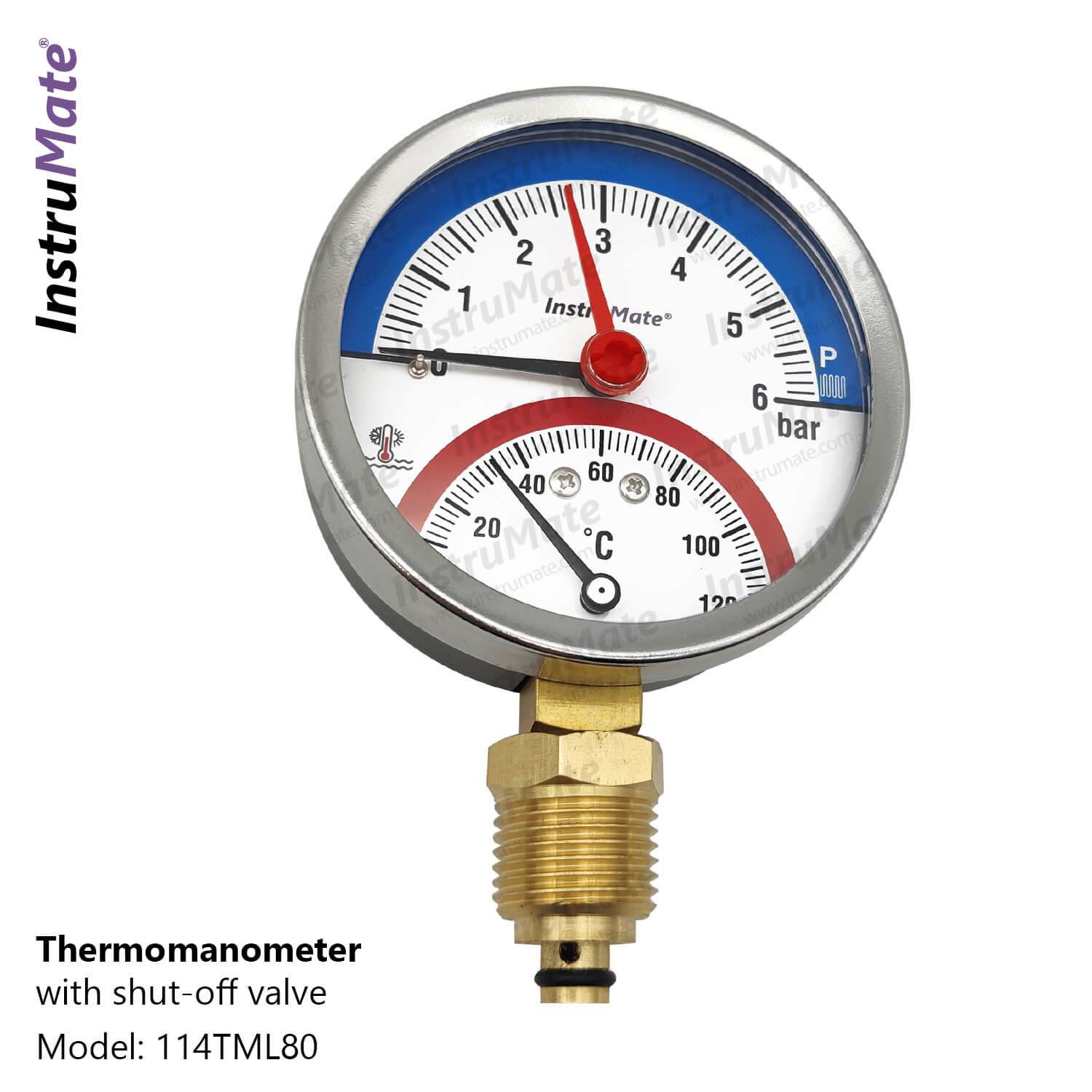

INSTRUMATE Thermomanometer Model 114TM
Description: InstruMate model 114TM provides you with the combined indication of pressure and temperature in a single instrument. This product, widely known as thermomanometer, finds its application mainly in heating systems and boilers. Model 114TM offered both in lower connection and back connection is available in most popular pressure and temperature ranges for a thermomanometer. 2 in 1 products can barely have the efficiency of separate measuring instruments, but they are a good choice when you have space limitations or have to read the values in the same measuring point.
Applications
* Boilers
* Heating systems
* Distillation devices
Special Features
* Indication of both pressure and temperature in one instrument
* Temperature pointer at center of dial (more accurate reading) Only for back connection
- Thông tin sản phẩm
Specification
Nominal Size in mm: 80
Scale Ranges:
Pressure scale ranges: 0…4, 0…6, 0…10, 0…16 (bar)
Temperature scale ranges: 0…120, 0…160, 0…200 (°C)
Pressure Limitations: 75% of scale range Max
Measuring Elements: Pressure: Copper alloy
Temperature: Bimetal coil
Permissible Temperature:
Ambient: -20…+60 °C
Medium: +150 °C Maximum
Accuracy:
Pressure: 2.5% of full scale
Temperature: ±3°C
Window: Snap-in lens
Case: Black steel
